SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

Jiangsu Zhongtai Packing Machinery Co., Ltd.
Contact Now

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

Brand Name : ZT-PACK

Model Number : ZSP-A

Certification : CE,ISO,SGS,SABER

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : TT/LC, Western Union

Supply Ability : 45 sets per month

Delivery Time : 30 days

Packaging Details : Wooden Case

Product Name : SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

Function : automatic viscous liquid filling machine

Usage : filling liquid soap detergent gel dish washer cleaning products

Filling material : Hand Sanitizer / Shampoo / Conditioner / Shower Gel

Filling Rage : 100ml-5L

accuracy : 0.5%

Keywords : high-accuracy

Machine body material : Stainless steel 304

Contact material : Stainless steel 316

Machine Size : 2400mm*1300mm*2150mm

Weight : 1200KG

warranty : 1 year

Contact Now

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

Description

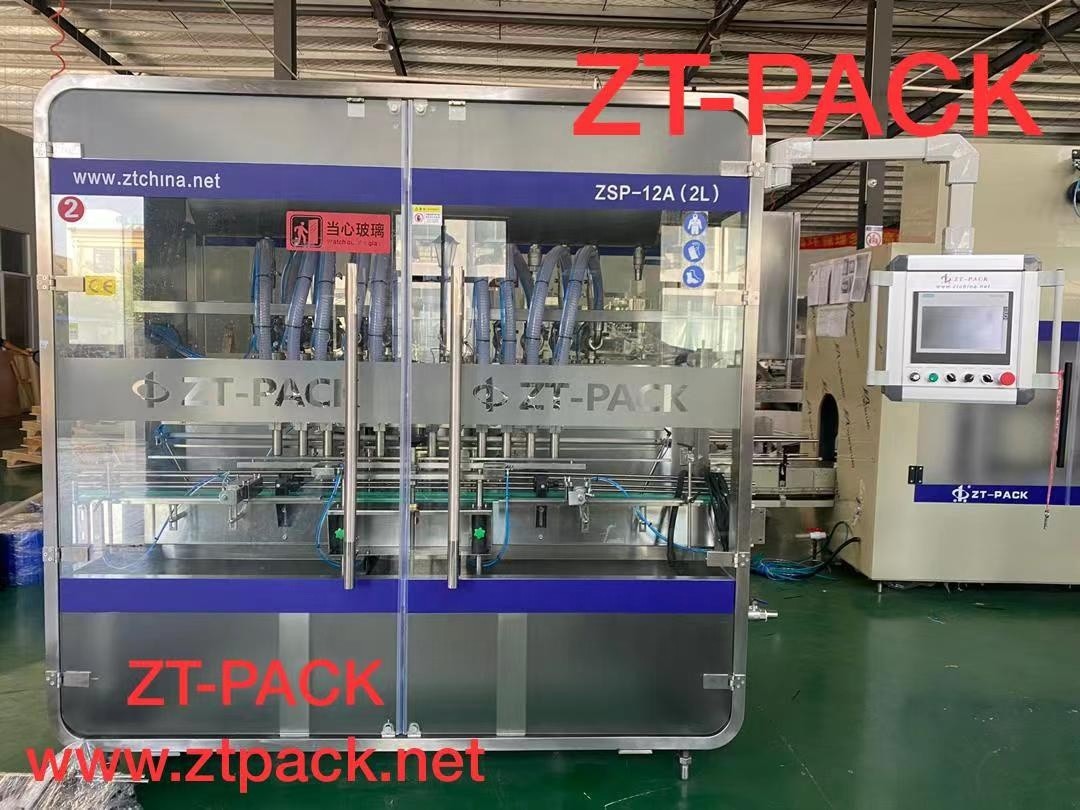

ZSP-A SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).

Empty bottles are staged on the main drive conveyor prior to entering the piston filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.

Feature:
1. Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.
2.The servo motor control belt drives the submerged filling mode of the filling head operation.
3. It can also adopt the de-cylinder structure, which can completely empty the material in the material tank, effectively avoiding cross-contamination of materials, and replacing the sealing ring is more convenient and quick.
4.The latest PTFE technology piston seals improve wear resistance, longer service life and lower maintenance costs.
5. Single-row layout cylinders and fast change-over fixing method which is very easy for cylinder disassembling and the sealing parts cleaning inside.

Model ZSP-6A ZSP-8A ZSP-10A ZSP-12A ZSP-16A
Dimension 2200mm(L)*1100mm(W)*2200mm(H) 2300mm(L)*1100mm(W)*2200mm(H) 2400mm(L)*1100mm(W)*2200mm(H)
Filling head 6 8 10 12 16
Capacity(1L) 1800BPH 2400BPH 3000BPH 3600BPH 4800BPH
Power 2.2KW 2.2KW 2.2KW 3KW 3KW
Suitable bottle Diameter:Ø40mm-100mm, height: Ø80mm-280mm
Neck diameter Ø18mm
Filling range 50ml-1000ml
Air pressure 0.6MPA-0.8MPA
Power supply 380V/220V, 50HZ/60HZ

Details:

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping MachinesSUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines

SUS316 Liquid Soap Dishwasher Detergent Gel Viscous Liquid Chemical Cleaning Product Filling Capping Machines
