Economic Type Cheap Industrial Equipment Filling Automatic Machine Dishwash Liquid Soap Bottle Filling Machine

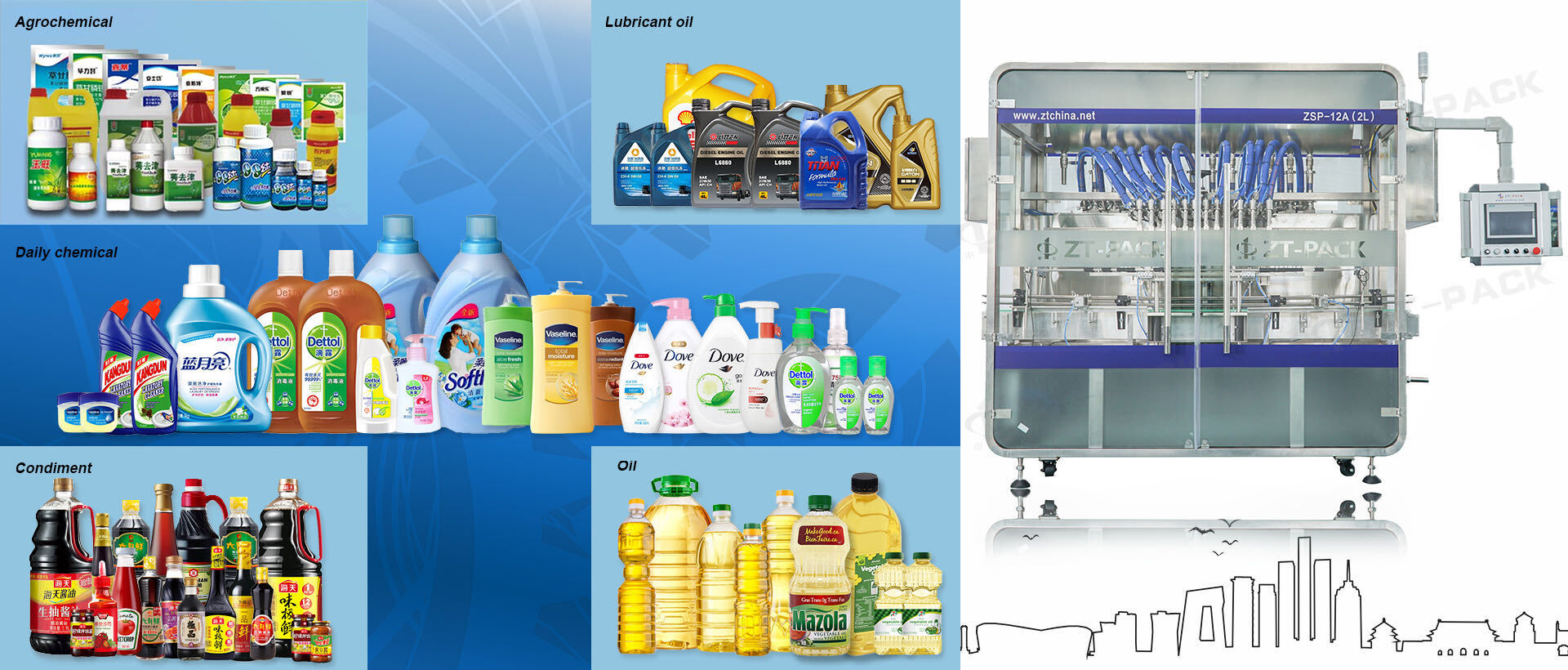

1: Widely Use For House Holding Chemicals Products Filling Packing
2: Filling range : 30ml -200ml 50ml -1000ml 300ml -5000ml
3: Capacity speed : 1000-6000BPH can be choosen according to requirements
4: Suitable For Different sizes , shapes of bottles without change Parts
5: Easy Adjust and operate when sizes change
6: High Accuracy : 0.2%
Main configuration:
Intelligent bottle unscrambler, intelligent filling and capping integrated machine, online check weighing and rejecting device, aluminum foil sealing machine, inkjet printer, two-dimensional code traceability system, high-speed unpacking machine, partition machine, intelligent packing machine, online inspection Heavy rejection machine, intelligent stacker, robot palletizer.
Key Features :
1> Different flling volume can be set on HMI directly,2> Fast to adjust for different bottle with in 10-20 min.;
3> Servo motor driven, High Filling Accuracy with in ± 0.2%. (depends on the material and flling volume).
4> CE, ISO and SGS approved and production comply with GMP standard;
5> Hygienic tri-clamps connection , easy to remove and clean; 6> CIP cleaning function available;
7> Buffer tanks with level control system;
8> Mature alarm system for safe operation.
9> Adopts international first-class electric and pneumatic configuration; Mistubishi 1 Siemens 1 Delta PLC and touch screen, Schneider/ omron low Voltage electricals, and Autonics sensor.
Parameter
Containers and Specifications (50mL-1000mL)
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm (L) x 1100mm (W)x 2200mm(H) | 2300mm(L) x1 100mm(W) x 2200mm(H) | 2400mm(L) x 1100mm(W) x 2200mm(H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm |
| Neck diameter | Φ18mm |
| Filling range | 50ml--1000ml (From ZT-PACK) |
| Filling System | Piston Type |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
Three way valve
1. Connecting among tank, rotaty valve,position tank all with fast remove clip.
2. The valve is special designed for oil without leakage, ensure high accuracy.
3. 0.2% accuracy
4. Each filling nozzles can be controlled
5. Servo motor control all nozzles
